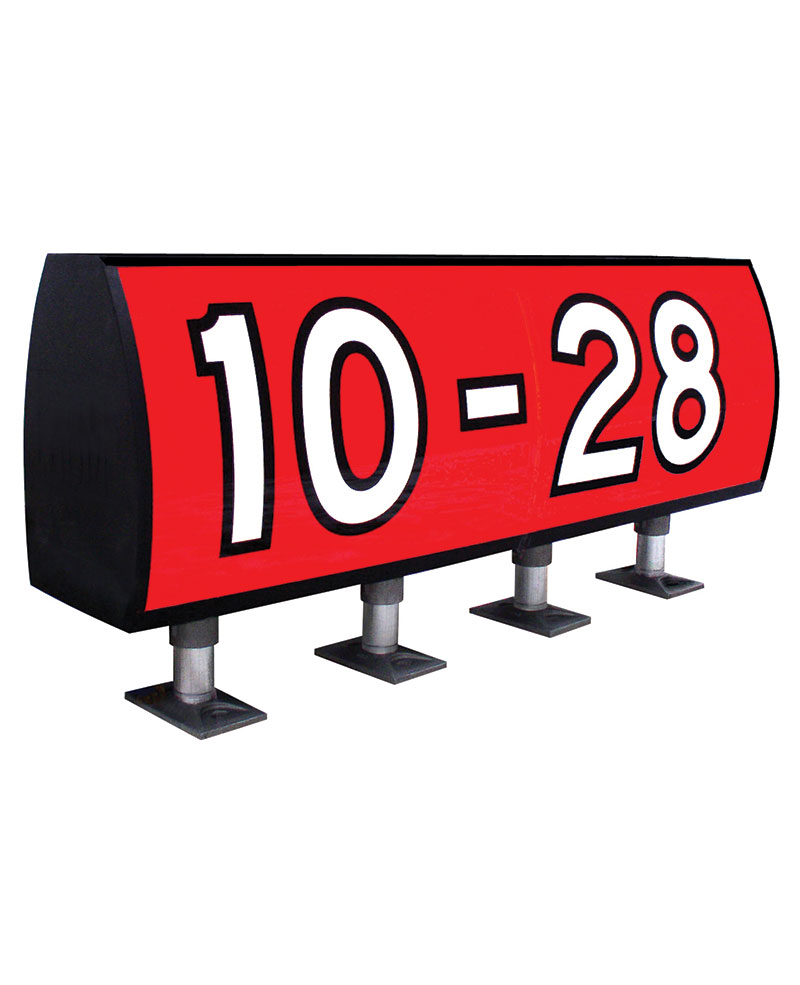

L-858 D-LUX™ Guidance Signs

Certified to FAA AC 15/5345-44 (Current Edition)
FAA Engineering Brief No. 67

[MAN] D-Lux Owner’s Manual for Signs with LED Board, Low Voltage Controller, Style 2, 3 & 5 Rev 1

[MAN] D-Lux Owner’s Manual for Signs with LED Board, Low Voltage Controller, Style 2, 3 & 5, On-Off Switch Rev 1

[MAN] D-Lux LED Retrofit Installation and Owner’s Manual Rev 1

[CoC] L-858(L) D-LUX Signs, Runway and Taxiway 3-13-24

• Easily replace traditional L-858 signs
• Each module is mounted on an evenly spaced pair of legs
• Slip-flanges hold the legs secure with almost no gap in the assembly
• Environmental forces are shared by legs and cabinet, and not concentrated on hardware
• Each rounded face if made from expertly formed acrylic
• Size 1 & 2 signs available with optional Herculens panel (Herculens panels come factory installed on size 3 D-Lux signs)
• Legend panels are connected by translucent panel joints, which are welded together with adhesive and additionally reinforced with stainless steel hardware
• Every module features a top that is designed to easily guide the edge of the panels into place when it is replaced after re-lamping, and is fixed to the sign with 2 turn fasteners – no tools are required for re-lamping
• Base model brightness controls use technology that has been proven for years in the field
