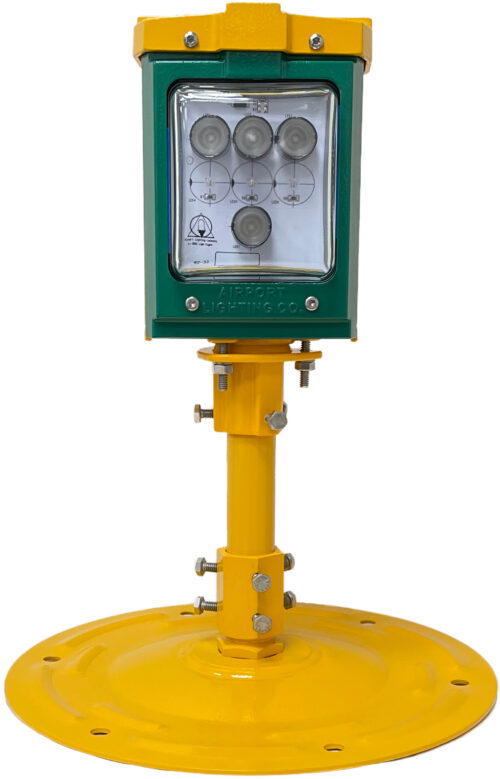

L-861SE (L) LED Light

Certified to FAA AC 150/5345-46 (Current Edition)
FAA Engineering Brief No. 67

[CoC] L-861SE(L) Medium Intensity Runway Light SE, LED Rev 3-24-22

 Runway Threshold/End, Non-Precision IFR Runways

• LEDs with expected life in excess of 56,000 hours.
• Light clarity ensured for years with glass lens.
• Dimmable to FAA intensity curve from 2.8 amp to 6.6 amps.
• Bidirectional fixtures use 65W, unidirectional fixtures use 45W
• Plug and Know circuit design. Dynamic controller senses the attached light engines, allowing for greater service flexibility.
• Daytime recognition provided on lens retainers.
• Leveling surface and sighting cross on cap eliminates the need for an aiming device.
• Fixture surface area designed to meet LED thermal requirements.
